Product Gallery
َAbout Product
- Perfect Letter Production – High-quality fabrication ensures flawless channel letters every time.
- Fully Automated Operation – Auto-feed, auto-slot, and auto-bend functions with adjustable cutting depth for seamless workflow.
- One-Cycle Computer Control – Single-button operation completes letter returns and outsides in one efficient cycle.
- High-Speed Production – Maximize efficiency with rapid fabrication, reducing downtime and boosting output.
- Precision Bending Technology – Ensures perfect alignment with CNC router-cut faces and backs for professional results.
- Massive Labor Savings – Replaces the production capacity of 10-20 manual workers, cutting costs significantly.
- Energy-Efficient Performance – Reduces power consumption while maintaining top-tier productivity.
- Universal Material Compatibility – Works with all standard aluminum materials for versatile fabrication.
- CE Certified – Guarantees top-quality, safety-compliant manufacturing for peace of mind.
Technical Parameters
| Cutting Method |
Milling cutter |
|---|---|
| Bending Method |
Double rod linkage bending method |
| Feeding Method |
Rolling feeding device |
| Minimum bending angle |
R≥15 mm |
| Cutting depth calibration |
Automatic by software |
| Applicable Material |
Channelume ,Extrusion Profile ,Flat Aluminum ,Korean Bar ,Metal Trim Cap |
| Height of Material |
20~180mm |
| Material Thickness |
0.3 ~1.2 mm |
| Size Accuracy |
±0.1 mm |
| Input File Format |
AI ,DXF ,PLT |
| Power |
Single-phase AC 220V, 50/60Hz |
| Air Source |
0.6 m3/min |
Introducing HT6 Channel Letter Bending Machine
The HT6 channel letter bending machine is designed for sign makers working with different types of aluminum letter returns and profiles. It processes aluminum materials from 20 to 180 mm high and 0.3 to 1.2 mm thick, with a minimum bending radius of R≥15 mm and a specified size accuracy of ±0.1 mm.
The machine accepts DXF, AI and PLT files, making it suitable for channel letter production workflows in which prepared vector designs are transferred directly to the bending system. Its broad material-height range makes the HT6 a practical choice for producing both compact lettering and larger illuminated signs.Key Features
In-House Letter Bending Software
The HT6 uses Hightech’s in-house letter bending software to manage feeding, slotting and bending parameters from the imported design file. Its available functions include:- Multi-point grooving
- Contour offset
- Tool-radius compensation
- Material memory
- One-click material changes
- Glue weight and area calculation
Software-Controlled Slotting System

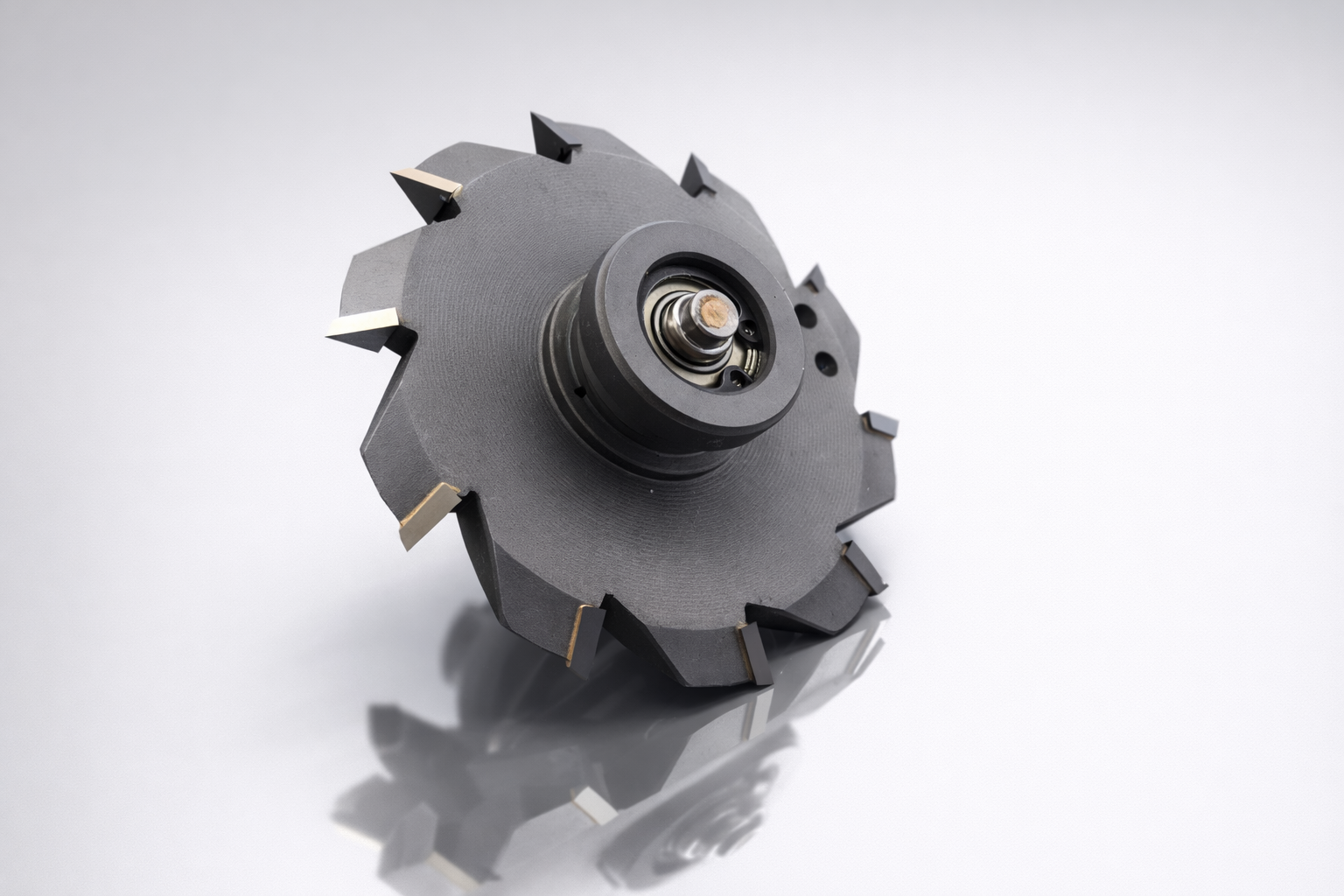

The milling system uses a 75 mm cutter with 10 cutting heads. Automatic angle recognition, front-and-back oscillating movement, motorized cutter-height adjustment and software-controlled cutting depth support the processing of different aluminum profiles and groove positions. The reinforced four-column cutting structure is designed to maintain stability during repeated channel letter production.Grooved-Roller Feeding and Bending

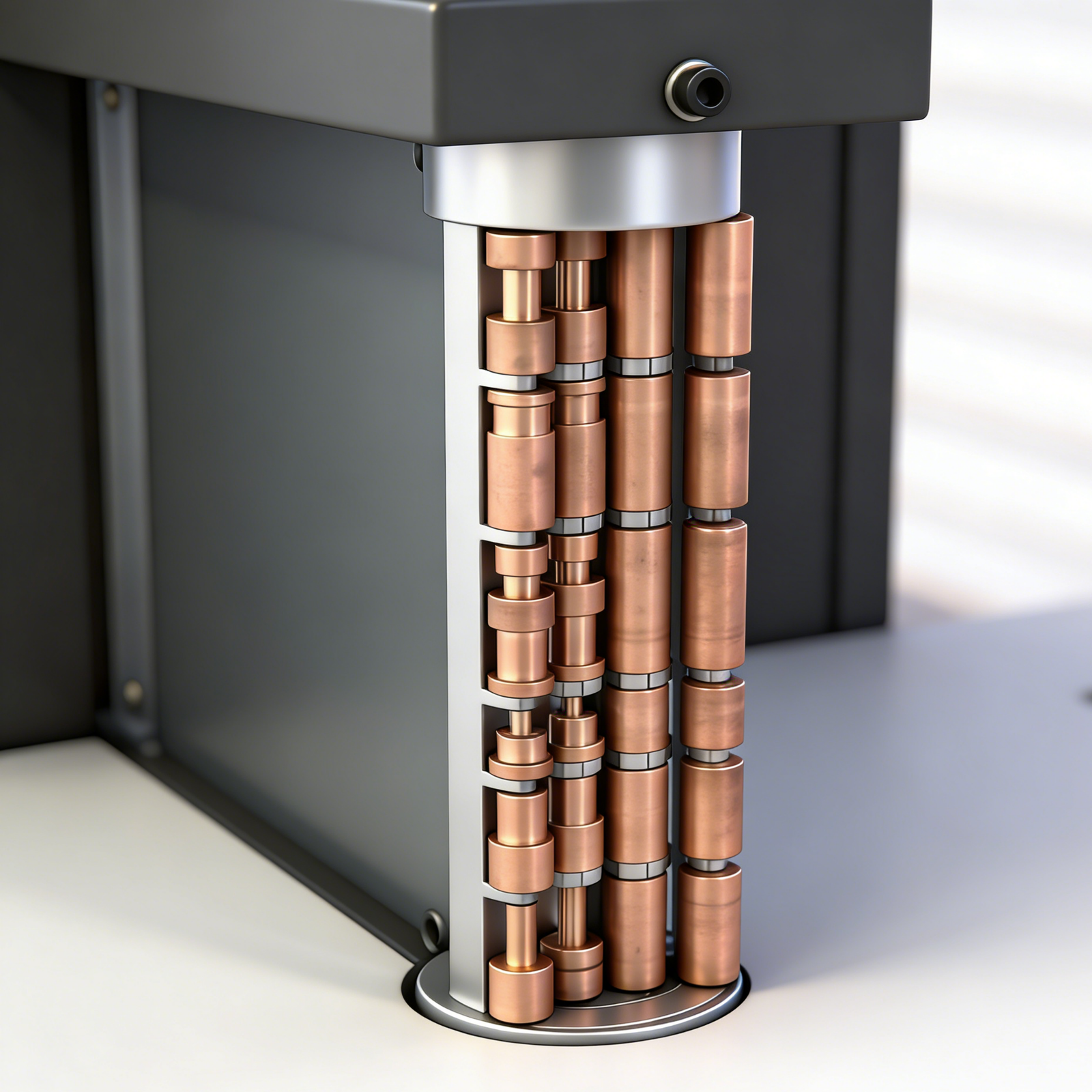

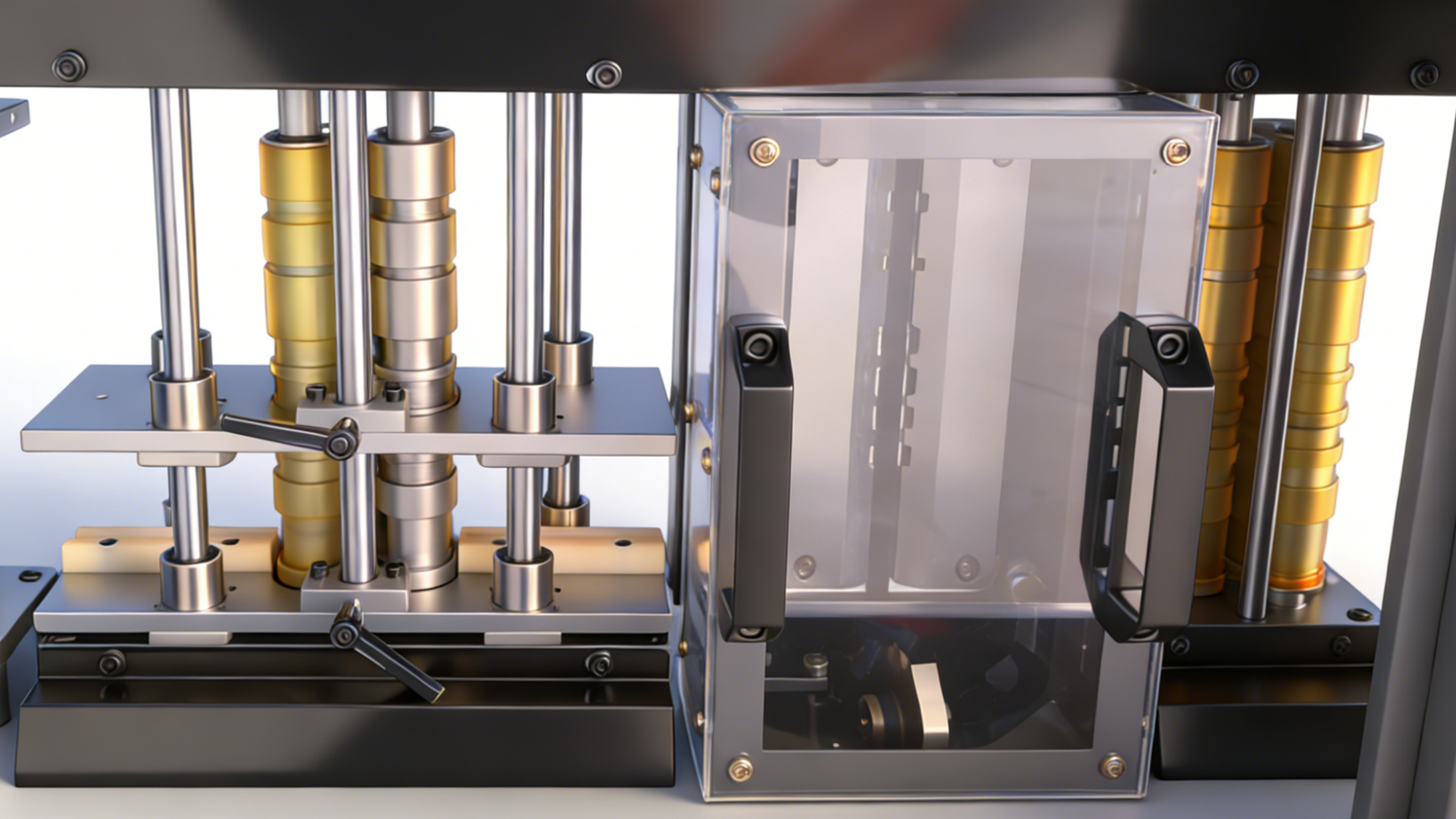

Grooved feeding rollers guide the aluminum material through the machine and help reduce slipping or distortion during processing. The grooved-cylinder bending structure applies consistent pressure while forming curves and corners. This arrangement is designed to reduce visible marks on the aluminum surface and maintain more consistent results across repeated letter components.Why Choose HT6
The HT6 is a suitable choice when a sign workshop needs to process several types of aluminum channel letter material on one machine. Its 20–180 mm material-height range covers a wider selection of letter returns, while the dedicated software provides useful controls for grooving, contour correction, tool compensation and stored material settings.
Choose the HT6 if your production requirements include:- Flat aluminum and formed aluminum letter profiles
- Material heights up to 180 mm
- DXF, AI or PLT design files
- Front- and back-side profile slotting
- Repeat production using saved material parameters
- A minimum bending radius of R≥15 mm
Applications
Illuminated Signage – Ideal for creating vibrant, luminous letters for billboards and storefronts. Custom Bending – Supports a wide range of materials, including side-light Channelume and extrusion profiles. Billboard Production – Perfect for producing high-quality, durable illuminated signage at scale.Get Quote
Please share your company name, email address, and the product you are looking for
Why Choose Hightech for Channel Letter Bending Machines?
Automated and Consistent Letter Forming
Hightech channel letter bending machines automate key processes such as material feeding, slotting and bending. This reduces manual work and helps sign makers produce accurate, repeatable channel letter returns.
Models for Different Sign-Making Materials
Hightech offers multiple channel letter bending machine models for different production requirements. Depending on the selected model, supported materials include flat aluminum, aluminum extrusion profiles, Channelume, galvanized steel and stainless steel.
One-Year Warranty and Lifetime Technical Support
Hightech machines include a one-year warranty and lifetime after-sales technical support. Services include installation guidance, machine setup, operator training, troubleshooting, software assistance and maintenance support.
Global Sales and Service Network
Hightech serves customers in more than 110 countries and is supported by international branches, sales hubs and 33 global agents. Remote support is available worldwide, while local or in-person assistance may be available in supported regions.
Get product details, technical guidance, and answers to your questions directly from our sales team. Contact us today on WhatsApp.
Contact Us
+1 (555) 743-9465
Frequently Asked Questions
Do you ship worldwide?
Yes. We export machines, equipment, and materials worldwide, including:
- North America
- South America
- Europe
- Middle East
- Asia
- Africa
- Australia
Where are your machines manufactured?
Our machines are manufactured by Shandong Hightech Industry Co., Ltd. in China, with global sales and support through our international branches and partners.
Do you have local branches?
Yes. Hightech Industry Group currently has branches, partners, or support networks in:
- Canada
- USA
- Mexico
- UAE
- India
- England
- China
Availability of local stock, support, and services may vary by region.
Can I see machine videos before purchasing?
Yes. We provide machine demo videos, tutorials, customer feedback videos, and production samples for most machine models.
Our sales team can also provide real production videos based on your application requirements.
Do you provide spare parts?
Yes. Spare parts and consumables are available for all supported machine models.
Replacement parts can be shipped worldwide by express courier, air cargo, or sea freight.
Can your machines be customized?
Yes. Some machines can be customized based on:
- Voltage requirements
- Working area size
- Power configuration
- Language settings
- Optional accessories
- Special production requirements
Please contact our sales team for customization options.
Why choose Hightech Industry Group?
- Factory-direct pricing
- Worldwide shipping
- Lifetime technical support
- Experienced international sales team
- Professional training assistance
- Local support in multiple countries
- High-quality industrial machines
- Trusted by customers worldwide since 2008
Do you provide after-sale service and training?
Yes. We provide lifetime after-sale support for all machines.
Our support includes:
- Remote installation assistance
- Machine setup guidance
- Operation training
- Troubleshooting support
- Software assistance
- Maintenance guidance
For customers in regions where we have local branches or partners — including USA, Canada, Mexico, UAE, India, and England — in-person service and technical support may be available depending on scheduling and location.
For customers in other countries, support is primarily provided online through WhatsApp, Zoom, WeChat, email, and video calls. In-person overseas service may also be arranged if required; however, transportation, visa, accommodation, and related travel expenses are the responsibility of the buyer.
What warranty do you provide?
All machines from Hightech Industry Group come with a 1-year warranty and lifetime after-sale technical support.
During the warranty period, if any non-human-damaged parts have issues, we provide replacement parts and technical assistance remotely.
Warranty coverage does not include consumables, accidental damage, improper operation, unstable power supply, or unauthorized modifications.
What shipping terms do you offer?
We offer worldwide shipping with multiple shipping options, including:
- EXW
- FOB
- CIF
- DDP (Door-to-Door)
Depending on the destination country, we can arrange customs clearance, import duties, and local delivery services through our logistics partners.
Do machines include software and accessories?
Most machines include:
- Operating software
- Standard accessories
- Tool kits
- User manuals
Some models may also include:
- Air compressor
- Water chiller
- DSP controller
- Spare parts kits
Computer inclusion depends on the machine model and quotation details.
What voltage and power requirements are needed?
Power requirements depend on the machine model.
Most machines use:
- 220V or 380V power supply
- Single-phase or three-phase electricity
Detailed power requirements are provided before shipment. Customers are responsible for preparing sufficient power supply and electrical setup.
What industries are your machines suitable for?
Our machines are widely used in industries such as:
- Signage manufacturing
- Metal fabrication
- Advertising production
- Woodworking
- Acrylic fabrication
- Sheet metal processing
- Industrial manufacturing
- Custom production workshops
Can beginners use your machines?
Yes. Many of our customers are new business owners or workshops starting their first production line.
Our machines are designed to be user-friendly, and we provide training videos, manuals, and remote guidance to help customers start production quickly.
What payment terms do you accept?
Our standard payment terms are:
- 30% deposit to start production
- 70% balance before shipment
For some local stock machines or special promotions, full payment before delivery may apply.
We accept:
- Bank wire transfer (T/T)
- International bank transfer
- Local payments through selected regional branches
How long is the delivery time?
Production and delivery time depends on the machine model and destination country.
Estimated production time is usually:
30–60 working days for most machines
Shipping time varies by destination and shipping method.
Our sales team will provide an estimated timeline before order confirmation.
Yes. The HT6 is designed for universal aluminum profile compatibility and supports Channelume, extrusion profiles, flat aluminum, Korean Bar, and metal Trim Cap. Its automatic calibration and roller feeding system help handle different profile types with minimal setup, without requiring custom tooling for standard materials.
Yes. The HT6 is CE certified for safety-compliant production. Its fully automated feeding, slotting, and bending process reduces manual work, improves production speed, and can replace the output of 10–20 manual workers in channel letter fabrication.
